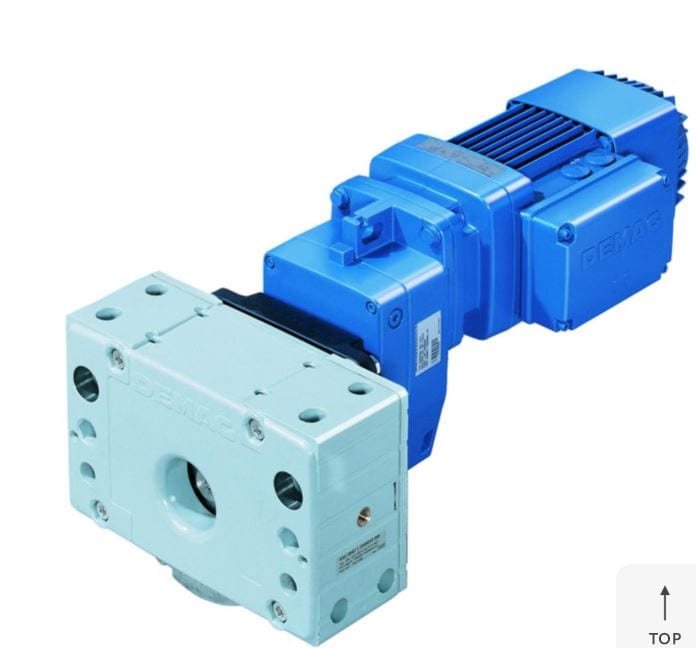

DEMAG Wheel Block DRS125-A35-A-60-K-X-A20


  • Manufacturer: Demag
  • Model: Demag WHEEL BLOCK DRS125-A35-A-60-K-X-A20

Our DRS wheel block system is a versatile travel wheel system and is perfectly integrated into our modular drive system. Eight finely graded sizes with load capacities of up to 40 tonnes per wheel provide the right wheel block for every application. And the large selection of travel wheels and special wheel designs enable them to be adapted to almost any travel rails and operating conditions. Cost-effective and ready to install. Further strengths:

High performance range and maximum load capacity
Many travel wheel shapes as standard as well as customer-specific designs
4 variants for connection to the customer’s superstructure
High-quality housing with optimum protection of the travel wheels and bearings
High rigidity
Direct connection of optional accessories
Laser alignment system for wheel blocks on multiple travel units.
Exact configuration

8 sizes with load capacities per wheel from 2.75 t to 40 t
Wheels of various shapes and designs – made of spheroidal-graphite cast iron (GGG 70), polyamide or featuring Hydropur tyres
Many connection variants

Prepared mounting surfaces for virtually any connection: from top and end connection arrangements with bolted and welded connection elements, to side and pin connection arrangements
Tailored solutions

Complete travel units with precisely matching geared motors from the Demag modular drive system
High rigidity thanks to special stiffeners
High ground clearance for wheel blocks thanks to the compact system design – also for complete drive units with their gearbox concept designed to match the wheel load
Horizontal guide roller arrangements and buffers in various sizes and designs (optional)
Very easy assembly

Housings ready for direct connection to superstructures
Simple connection to superstructures thanks to tight design and position tolerances of the housing and precise geometry in all planes
Laser alignment system for simple and precise alignment of the wheel blocks
Simple wheel replacement without the need for re-alignment of top connection thanks to patented asymmetrical housing
Wheel blocks can also be moved and aligned laterally after they have been installed in hollow sections and beams (for top, end and pin connection arrangements)
Require little maintenance

Cast housing enclosed on five sides reliably protects the travel wheels against any mechanical influence
Generously dimensioned grooved ball bearings which are lubricated for life, tapered roller bearings from size DRS 250
Travel wheels made of self-lubricating spheroidal-graphite cast iron (GGG 70) for low friction and high resistance to wear
Integrated wear indicator on wheels with flanges for remote visual diagnosis

DEMAG Wheel Block DRS125-A35-A-60-K-X-A20
