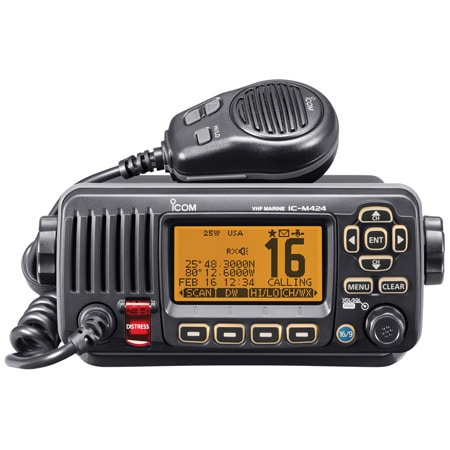

Fixed Mount VHF Radio with Internal GPS

Available For: Sale|
Listed on: 03-Mar-2024
| Functions: Marine Equipment, Parts & Accessories
| Type: Machinery
| Price: S$ 434

Specification
Description

Manufacturer: ICOM
Model: M424G
Condition: NEW
Year of Make: 2021
Available for Export

Frequency range TX 156.025–157.425 MHz
RX 156.050–163.275 MHz
CH.70 156.525 MHz
Usable channels USA, CAN, INT, WX channels
Type of emission 16K0G3E, 16K0G2B
Power supply requirement 13.8 V DC nominal
(11.7-15.9 V DC)
Current drain
(at 13.8V DC) TX 25 W output 5.5 A
RX AF max. External SP 5.0 A
(RX SP ON)
Internal SP 1.5 A
Operating temperature range −20°C to +60°C;
−4°F to +140°F
Antenna impedance 50 Ω (SO-239)
Dimensions (W×H×D)
(projections not included) 180×82×119.9 mm
7.09×3.23×4.72 in
Weight (approx.) 1.2 kg; 2.65 lb
NMEA in/out formats RMC, GGA, GNS, GLL, DSC, DSE
Transmitter
Output power (at 13.8 V DC) 25 W, 1 W
Max. frequency deviation ±5.0 kHz
Frequency tolerance ±10 ppm (−20°C to +60°C)
Spurious emissions Less than −70 dBc (High)
Less than −56 dBc (Low)
Receiver
Sensitivity (12dB SINAD) −13dBμ typ.
Squelch sensitivity Less than −10dBμ
Adjacent channel selectivity More than 70dB
Spurious response More than 70dB
Intermodulation More than 70dB
Audio output power
(at 10% distortion, 4Ω load) 10W typical (Ext. speaker)
GPS Receiver
Receiving frequency 1575.42 MHz
Receiving channels 66 channels
Satellite differential type WAAS, EGNOS, MSAS, GAGAN
Applicable IP Rating
Ingress Protection Standards
Water
IPX7 (Waterproof protection)

All stated specifications are subject to change without notice or obligation.

Supplied Accessories
Hand microphone, HM-205B/SW
DC power cable
Mounting bracket kit

Intuitive User Interface and White Backlit LCD and Keypad
Incorporating Icom’s common Marine Family User Interface designed for simple, intuitive operation. A rotary selector and directional keypad provide quick and easy access to the intended functions. The high contrast white backlit LCD and laser-cut keypad match well with modern boat designs.

Active Noise Cancelling
The built-in active noise cancelling provides superb performance. It reduces background noise up to 90% in the received signal and 30% in the transmits signal.

10 W Loud Audio, Public Address and Foghorn
The IC-M424G has a built-in 10 W amplifier that increases the audio output to an external PA speaker. The public address function allows you to make an announcement from the microphone like a loud speaker, the foghorn can also be emitted from the external PA speaker.

Built-in Class D DSC
The built-in DSC watch function monitors Ch. 70 (DSC channel) activity, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls.

Built-in GPS Receiver
The built-in GPS receiver shows your current position, date/time and can be used for DSC calls. The GPS data source is selectable from internal and external GPS.

Optional White Backlit COMMANDMIC™ HM-195GB/GW
The optional white backlit COMMANDMIC makes it convenient for using the IC-M424G from a separate cabin or tower. All functions of the IC-M424G can be controlled from the COMMANDMIC and can be used as an intercom with the IC-M424G.

AIS Target Call with MA-510TR/MA-500TR
When connected to the optional MA-510TR/MA-500TR Class B AIS transponder, the AIS target call function allows you to make an individual DSC call without having to manually input an MMSI number.

Other Features
Simple remote control speaker-microphone, HM-205B/SW
NMEA 0183 connectivity
MarineCommander™ compatible
AquaQuake™ draining function
IPX7 submersible protection (1m depth for 30 minutes)
Weather channels with alert function
Dual/tri-watch function
Priority and normal scan
Black and super white versions available
Supports 4-digit channels
