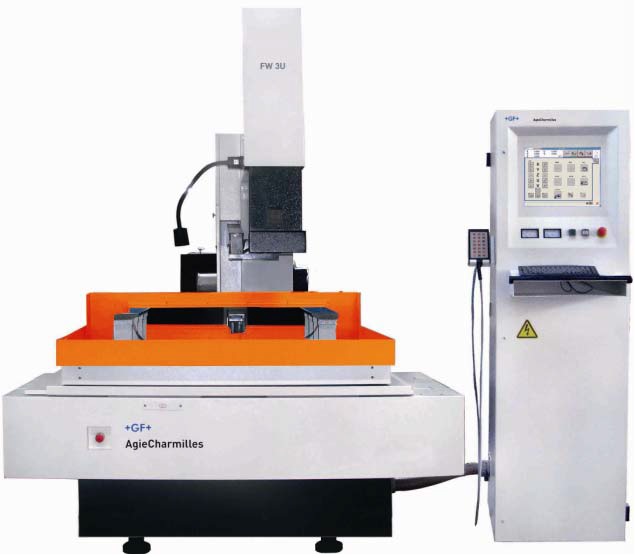

CNC High Speed Wire Cut EDM

  • Manufacturer: Agie Charmmilles
  • Model: FW3U
  • Condition: USED
  • Year of Make: 2014
  • Capacity: Max work piece Size 930 x 650 x 400
  • Available for Export

Dimensions (LxWxH) mm 2310×1940×2408
Machine weight kg 3260
Machine floor space m^2 3.7 x 3.3
Worktable size (LxW) mm 930 x 650
Travel X/Y mm 630 x 500
Travel U/V mm 44（±22）
Max. taper angle ° ±3 (H=250mm)
Accuracy of taper cutting ≤3o error 1′30″ > 3o~6o error 8′
≤ 3o error 1′30″
> 3o~6o error 8′
≤ 3o error 1′30″
Travel Z mm 350 (NC)

Work piece
Maximum weight kg 800
Maximum size mm 930 x 650 x 400

CNC High Speed Wire Cut EDM

Add to Enquiry
Categories: , Tag:
Add to wishlist
Send an Enquiry
