CNC Lathe

Available For: Rent|Sale|
Listed on: 17-Jul-2023
| Function: Manufacturing
| Type: Machinery
| Price Upon Enquiry

Specification

Manufacturer: Taiwan Made
Model: 1000 x 3200
Condition: Very Good
Year of Make: 2012
Capacity: 37HP Spindle Motor
Available for Export

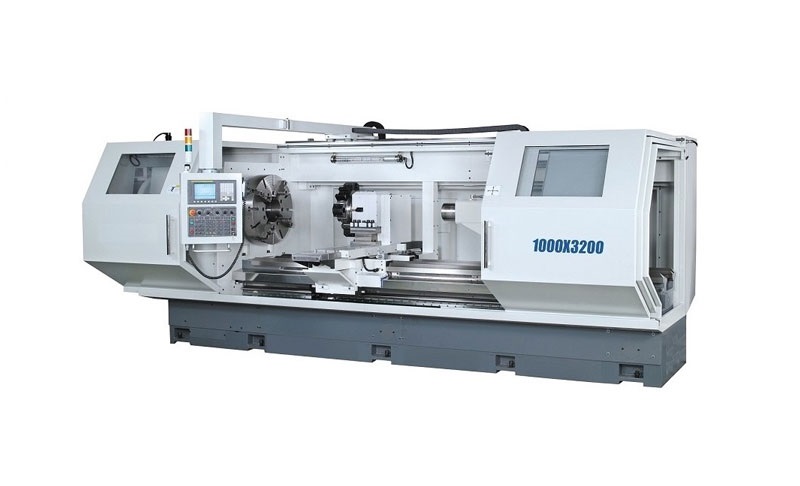

CNC Lathe Model 1000x3200
Fanuc Oi-TD Control
Made In Taiwan
35HP Spinlde motor Alpha i22/7000 with Spindle Cooling
Fanuc Oi-TD With LCD Colour Monitor
Floor Type Machine Casting Base Design
3V Guideway Type Bed & Width of Bed: 560 mm
Headstock Hydraulic Auto Speed Shifting 3 Step(20-650 RPM)
Spindle Thru Hole Diameter : 255 mm IA2-15
Maximum swing over bed & carriage : 101Omm/670 mm
Maximum Travel: X : 550mm Z: 3050mm
Rapid Feed X : i0 meter , Z : 8 meter
V8 Hydraulic Turrent
Servo Motor X,Z: 3kw,4kw( Transmission Ration 1:2)
Heat Exchanger For Electrical Cabinet
Worklight & Coolant Motor System
Manual Type Two Step Tailstock with 165mm I MT6
Standard Accessories
1 qty - Steady Rest 30-300
1 qty - Steady Rest 280-500
1 qty - MT6 Centers for Tailstock
1 qty - Rear Spindle Interface with Double Chuck 25 " 3 Jaw
1 qty - Boring Holder Dia 125 m m 1
4 qty - Boring Holder For Turrent
4 qty - Sleeve for ID Holder 40,32,25,20
8 qty - OD Block For Turrent
