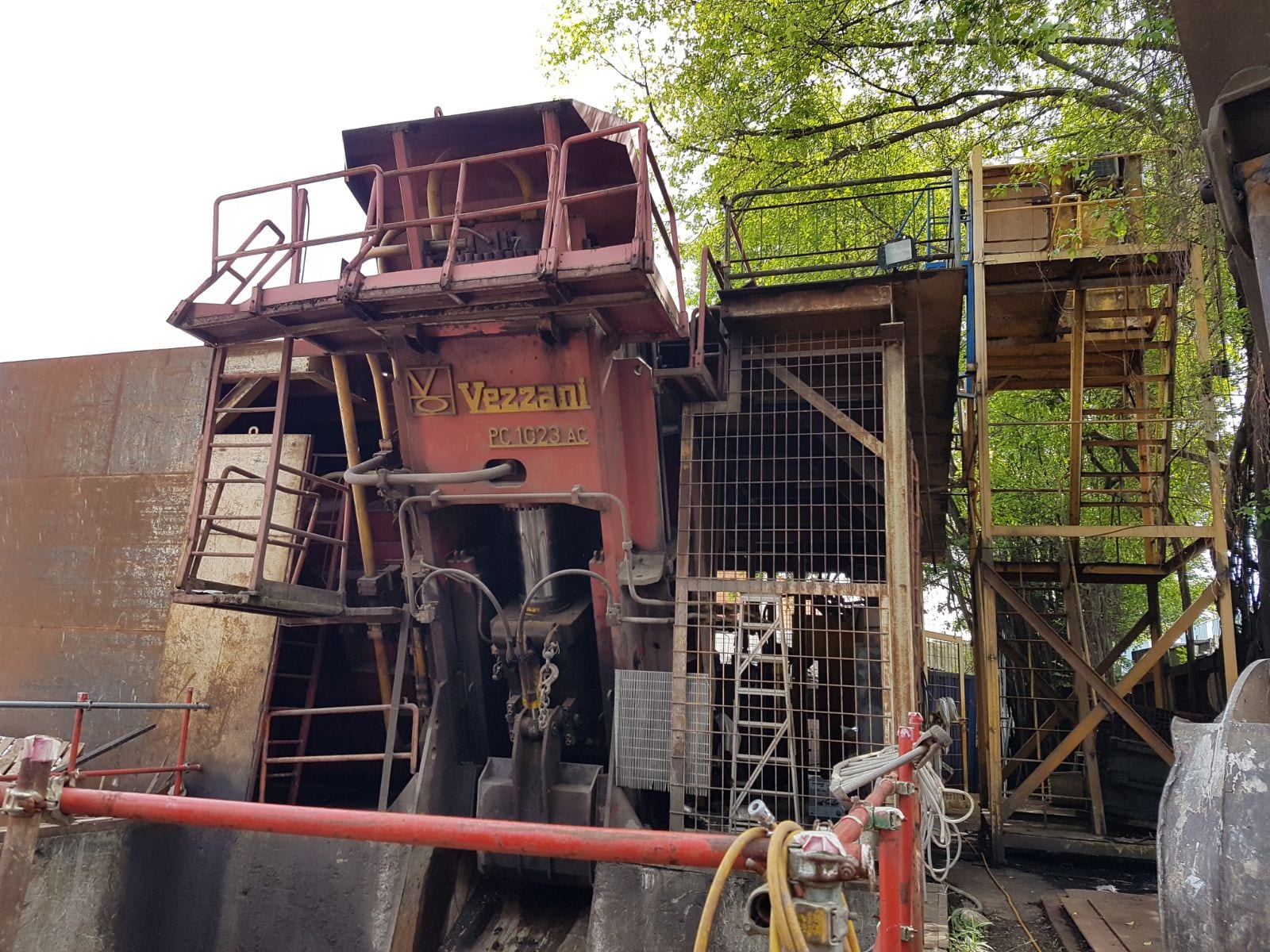

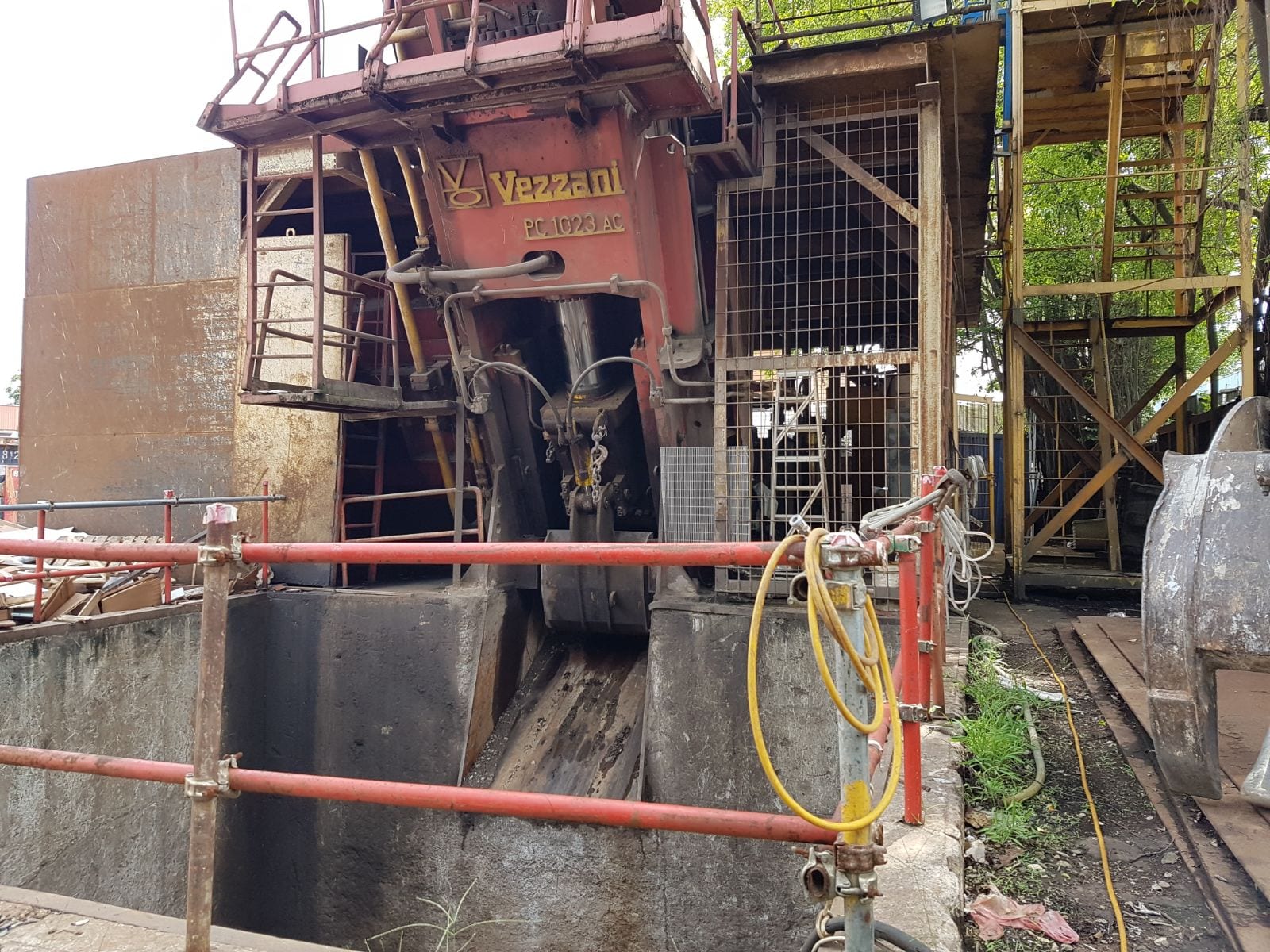

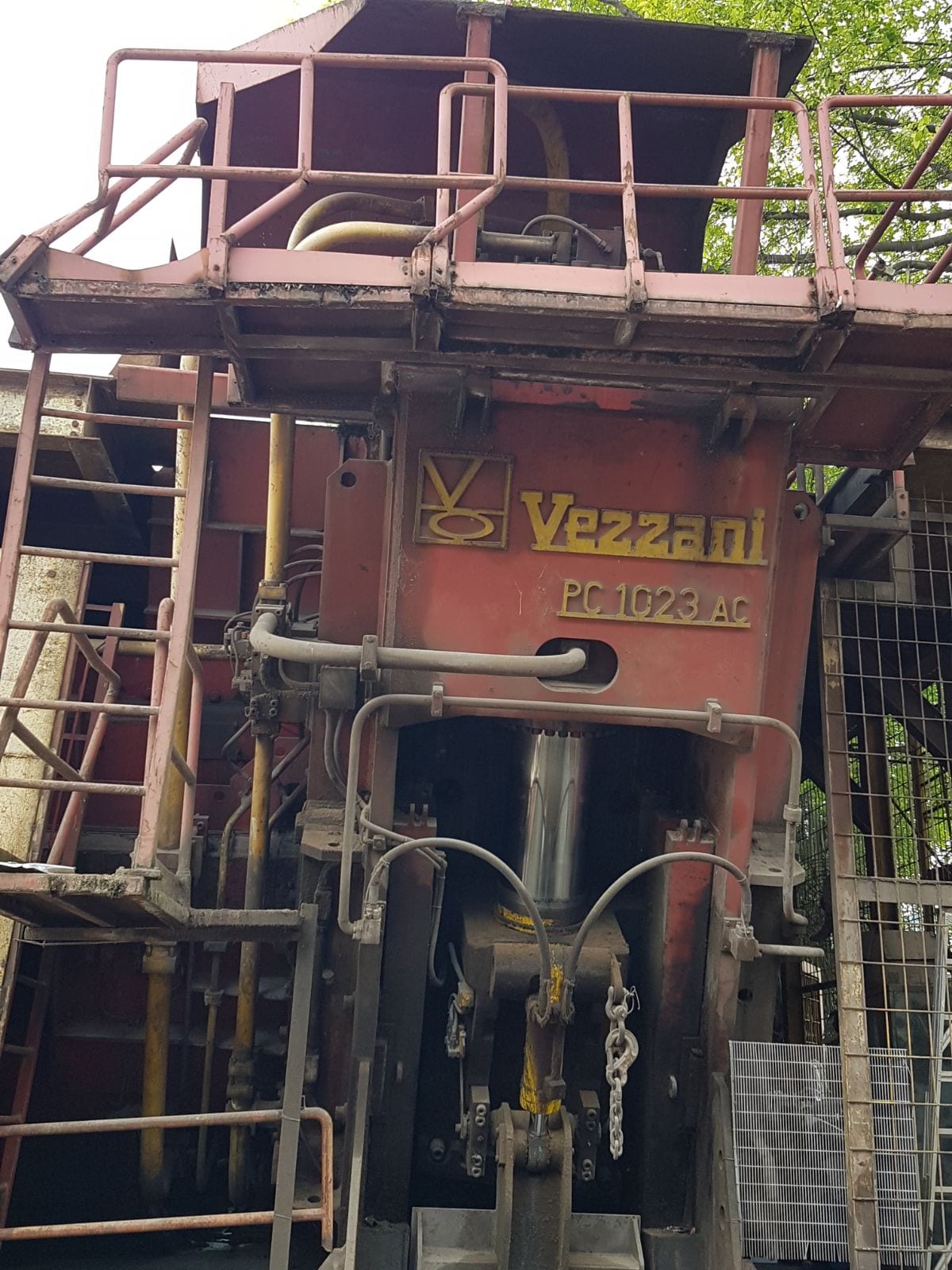

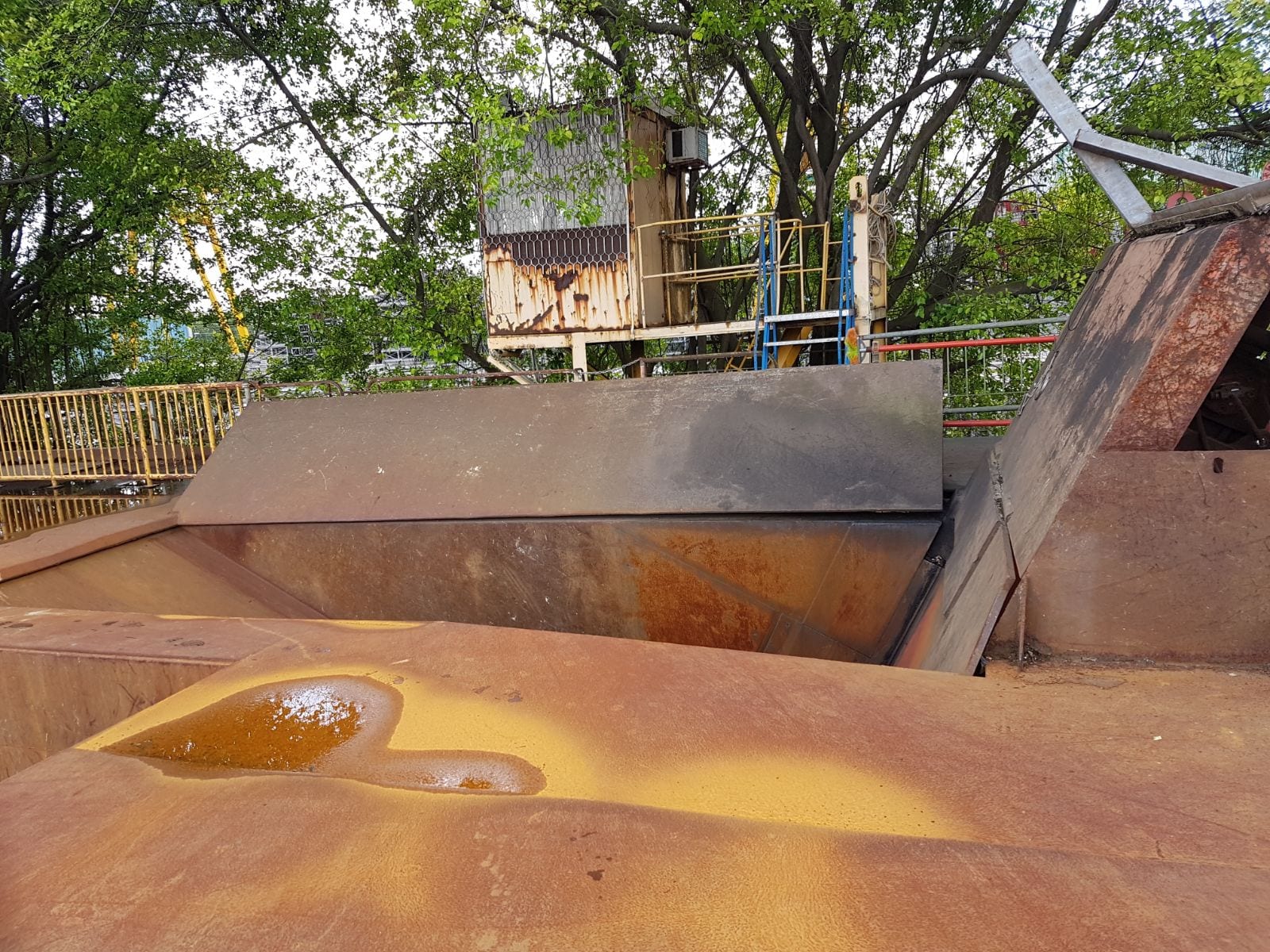

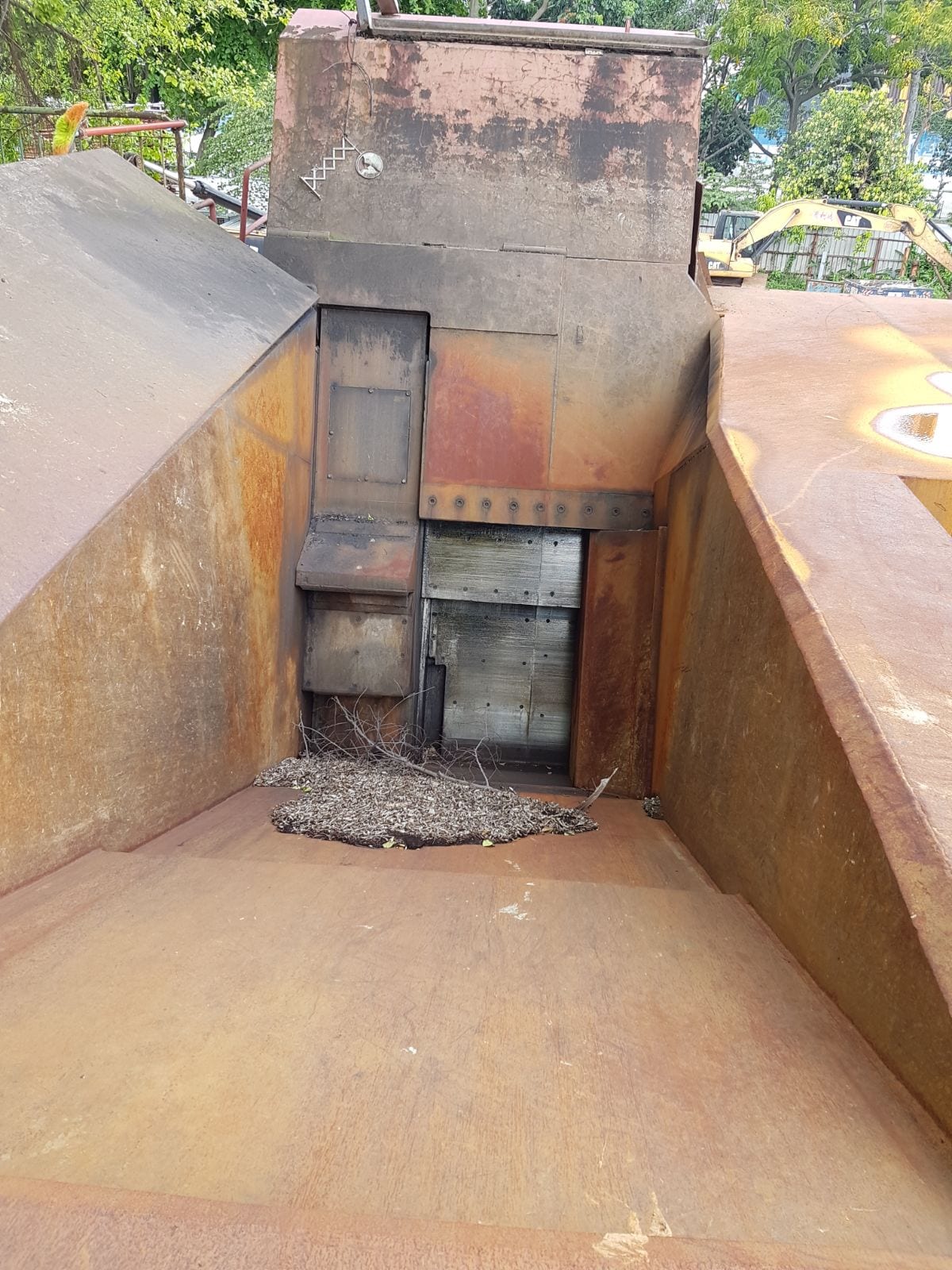

VEZZANI Shear PC 1023 AC

  • Available For: Sale|
  • Listed on: 19-May-2018
  • | Function: Processing
  • | Type: Shear
  • | Price Upon Enquiry

  • Manufacturer: Vezzani
  • Model: PC 1023 AC
  • Condition: Used
  • Available for Export

S/N: 543
Max shearing force: 10000KN
Blade width: 1060mm
Cut width: Min 800mm, Max 960
Blankholder: Max thrust - 2550KN, Max height - 2600mm
Transversal thrust block: Max thrust 2550KN
Approx installed power: 424KW
Motor's tension: V380 - 50Hz

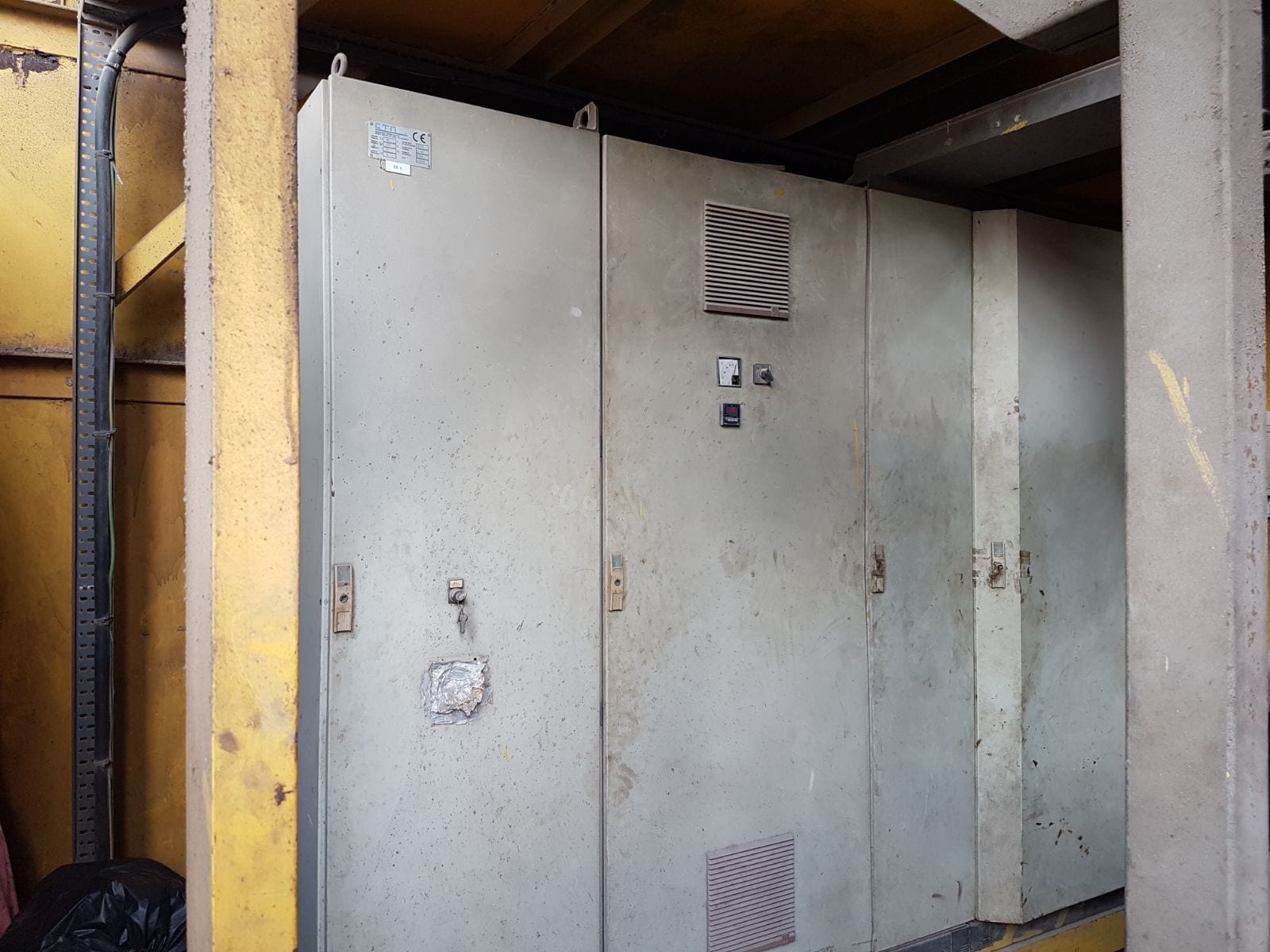

Auxiliary commands tension: V24dc
Cutting capacity (approx): Plate - 90x960mm, Round - 200mm, Square - 180mm
Output: cuts/ hr: Shear-press - no. 160 - 210
Shear - no. 220 - 280
Weight of the machine: Not less than 130 tons
Mainframe: Approx 68 tons

VEZZANI Shear PC 1023 AC
