Vertical Dock Leveller

  • Manufacturer: MHE-Demag
  • Model: Vertical Dock Leveller

Perfect loading dock solution for facilities and applications that require strict climate control or high cleanliness levels.

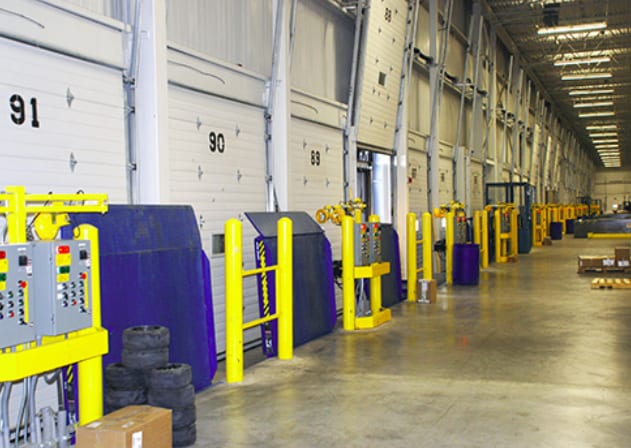

VS Vertical Dock Levellers for Cold Store Facilities

MHE-Blue Giant Vertical Storing Dock Leveller is the perfect loading dock solution for facilities and applications that require strict climate control or high cleanliness levels. It improves internal temperature control, reduces the risk of door damage and minimises debris entry. Trailers typically back into the specially designed loading dock bay and a complete seal is formed between the trailer and inside the facility before the doors are opened, preventing contamination.


‘Constant pressure’-style down button ensures controlled lowering during operation
Deck will flex up to 4” (101 mm) when under load
3″ high run off guards
Fail-safe hydraulic system with double-acting lip cylinder
Hydraulic velocity at the cylinder’s hose to prevent platform free-fall in the event of hose rupture
With Blue Genius™ Gold Series I Touch Control Panel
NEMA4X, CSA/UL Approved
Safety features:
A hydraulic velocity fuse limits the loaded ramp’s free fall to within 3” (76mm)
A home proximity sensor detects when the dock is in the parked position
Stationary side tapered toe guards have high visibility OSHA safety striping
A maintenance strut supports the deck for safe under-deck maintenance and inspection
A range proximity sensor allows the deck movements to match those of the trailer bed, eliminating hazards caused by mismatched deck and trailer bed levels
18” (457 mm) and 20” (508 mm) lips
Environmentally friendly biodegradable oil
Hot dipped galvanising (deck and rear frame)
Stainless steel lip and rear hinge pins
Three wheel forklift center deck support
KRS Vertical Dock Leveler

KRS Vertical Dock Leveler is suitable for low to medium duty warehouses where there are existing docks and a quick fit solution is required. The deck is raised and lowered mechanically by a set of counterbalanced springs. The structure is welded directly onto a steel profile that is mounted on the edge of the dock. Optionally a rail can be used to allow the platform to be moved to serve several loading points.

Vertical Dock Leveller
