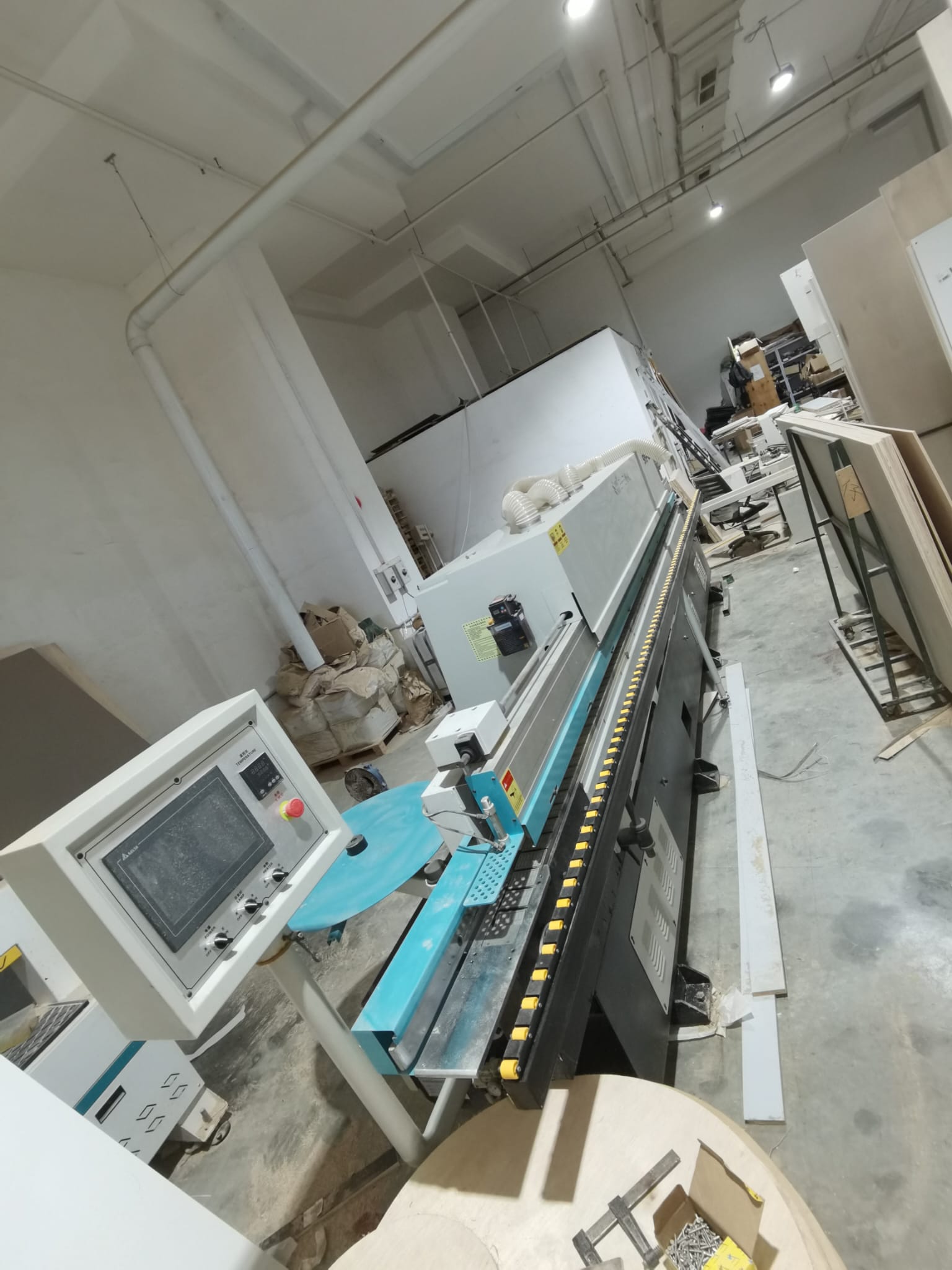

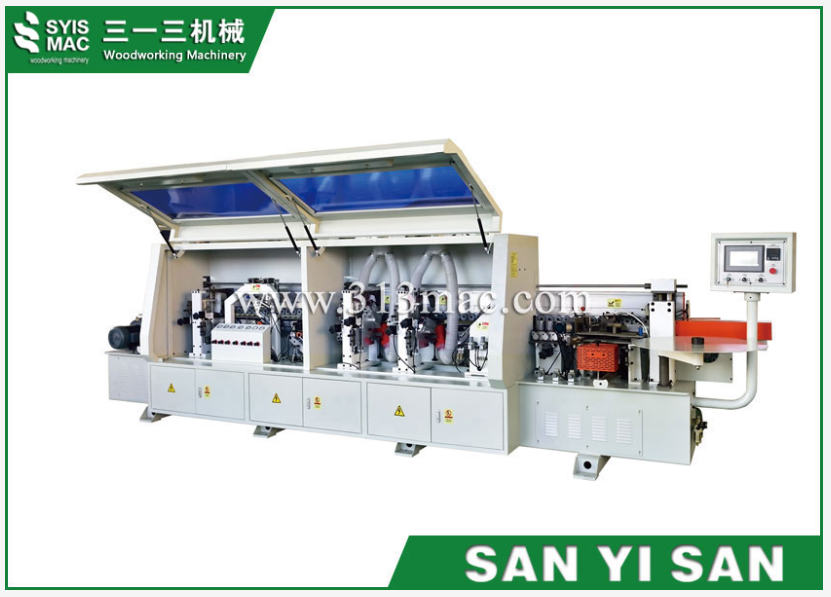

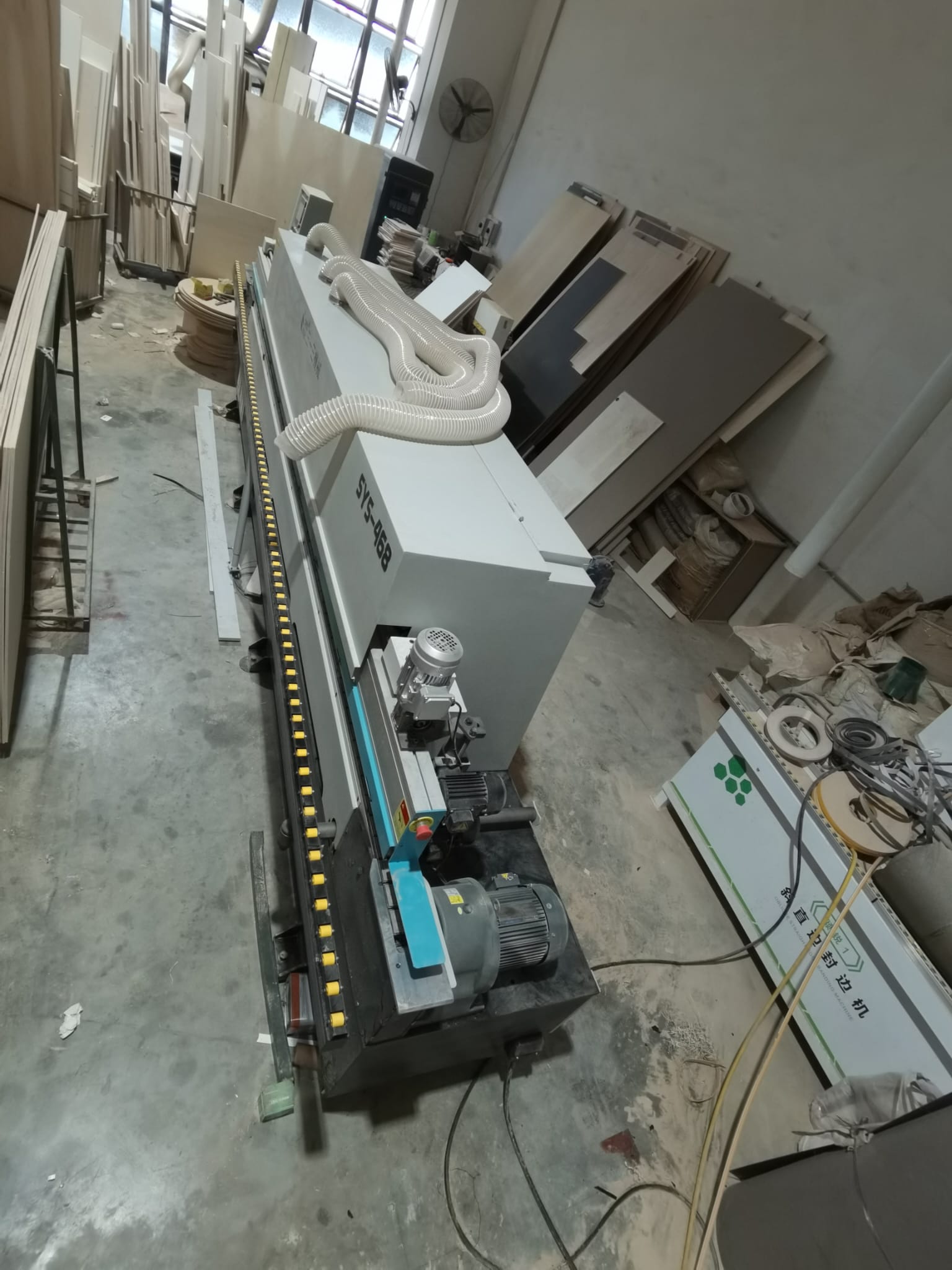

SYS-468 Automatic Edge Banding Machine 全自动双修封边机

Available For: Sale|
Listed on: 22-Dec-2022
| Function: Material Fabrication
| Type: Machinery
| Price: S$ 15,000

Specification
Description

Manufacturer: Qingdao Three-One-Three Woodworking Machinery Co.,Ltd
Model: SYS-468
Condition: Good Condition
Year of Make: 2020

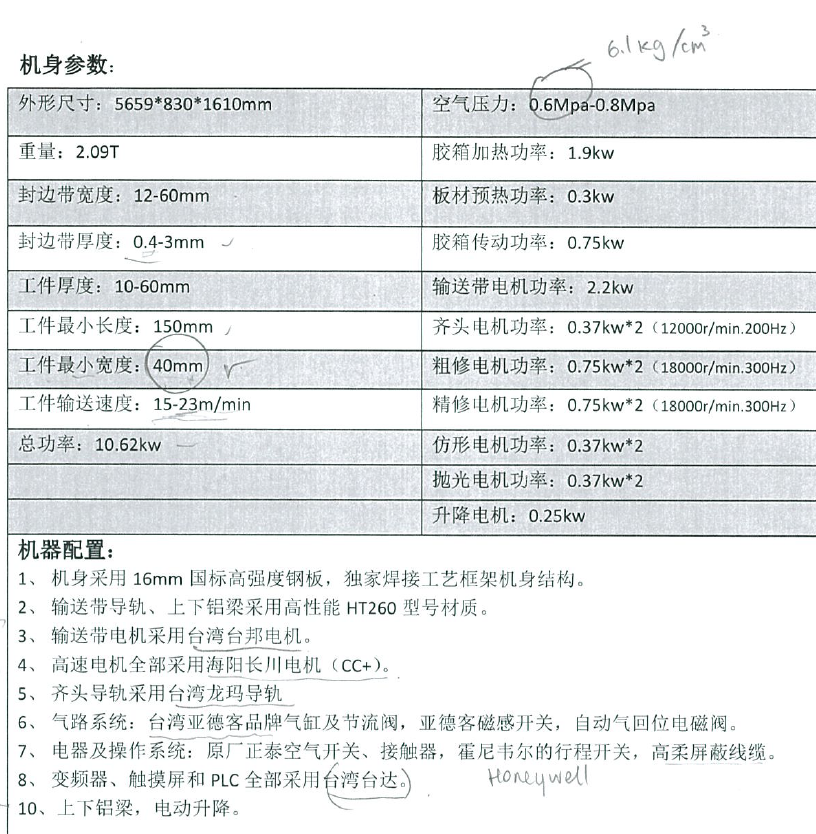

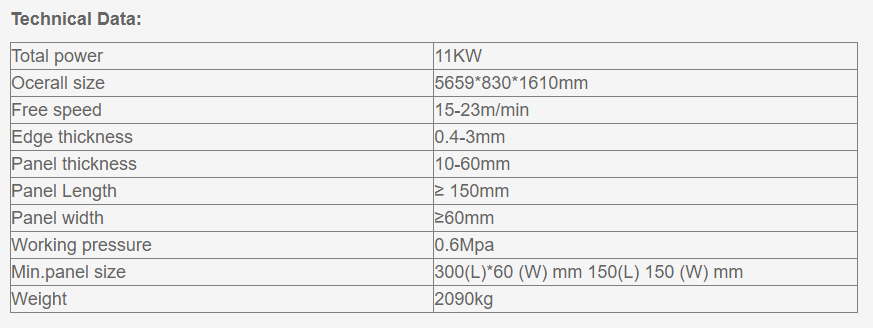

总功率Total power 11KW
外形尺寸Ocerall size 5659*830*1610mm
进给速度Free speed 15-23m/min
封边带厚度Edge thickness 0.4-3mm
板料厚度Panel thickness 10-60mm
板料长度Panel Length ≥ 150mm
板料宽度Panel width ≥60mm
工作气压 Working pressure 0.6Mpa
最小板尺寸Min.panel size 300(L)*60 (W) mm 150(L) 150 (W) mm
重量Weight 2090kg

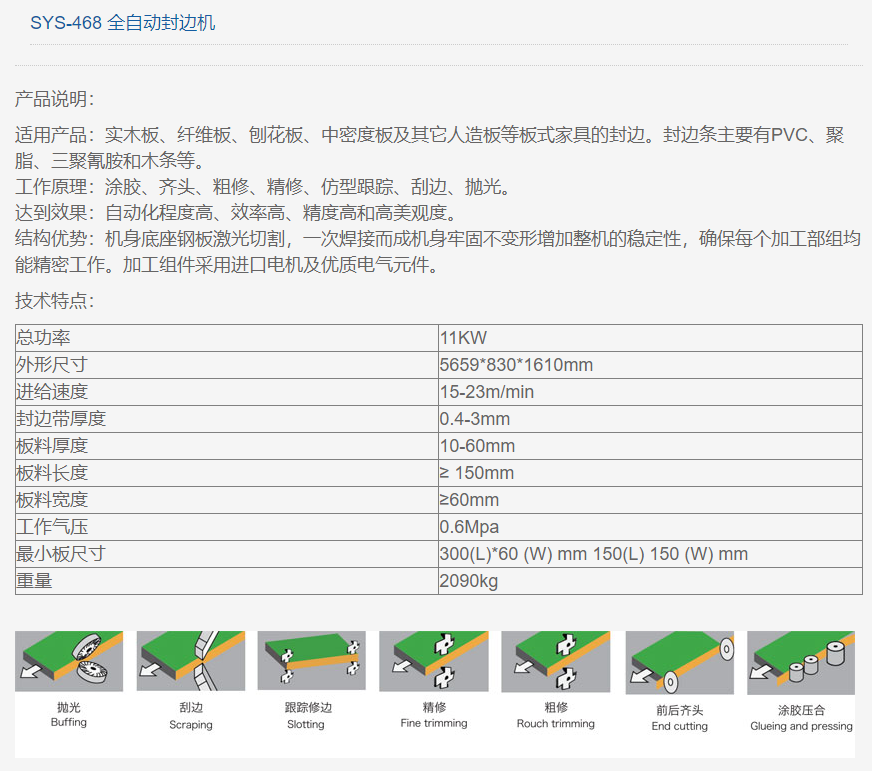

* 适用产品：实木板、纤维板、刨花板、中密度板及其它人造板等板式家具的封边。封边条主要有PVC、聚脂、三聚氰胺和木条等。
* 工作原理：涂胶、齐头、粗修、精修、仿型跟踪、刮边、抛光。
* 达到效果：自动化程度高、效率高、精度高和高美观度。
* 结构优势：机身底座钢板激光切割，一次焊接而成机身牢固不变形增加整机的稳定性，确保每个加工部组均能精密工作。加工组件采用进口电机及优质电气元件。

* Working principle: Glueing and pressing, End cutting, Rouch Trimming, Fine Trimming, Slotting, Scraping, Buffing.
* Achieve results: A high degree of automation, high efficiency, high precision and high aesthetics.
* Structural advantages: Laser cutting steel plate base, a welded body made of solid deformation does not increase the stability of the machine to ensure that each processing department can work fine. Processing components imported motor and high-quality electrical components.
Product Application
– Solid wood panels, fibreboard, particleboard, MDF and other panels and other panel furniture Edge. Edge of the main PVC, polyester, melamine and wood, and so on.
