Section Bending Machine

Available For: Sale|
Listed on: 04-Jul-2022
| Function: Cut & Bend
| Type: Machinery
| Price Upon Enquiry

Specification
Description

Manufacturer: MG Srl
Model: AR200
Condition: Good Condition
Year of Make: 2009
Capacity: Output Shaft 200MM
Available for Export

Video: https://www.youtube.com/watch?v=dRV8XwTQW9o

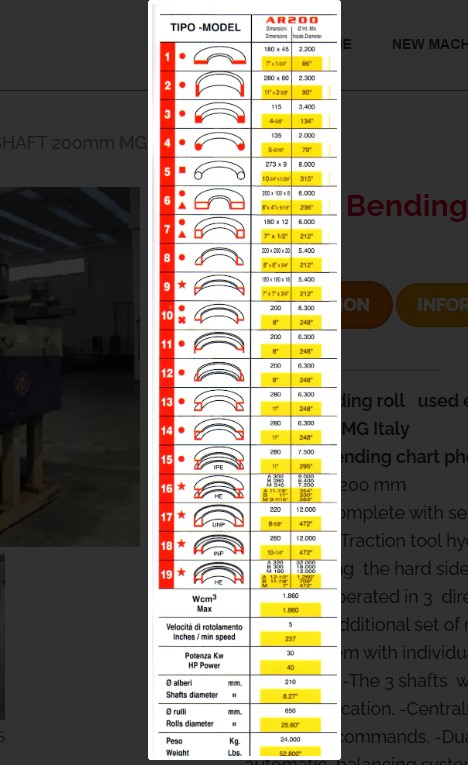

Technical data: Output shafts size 200 mm

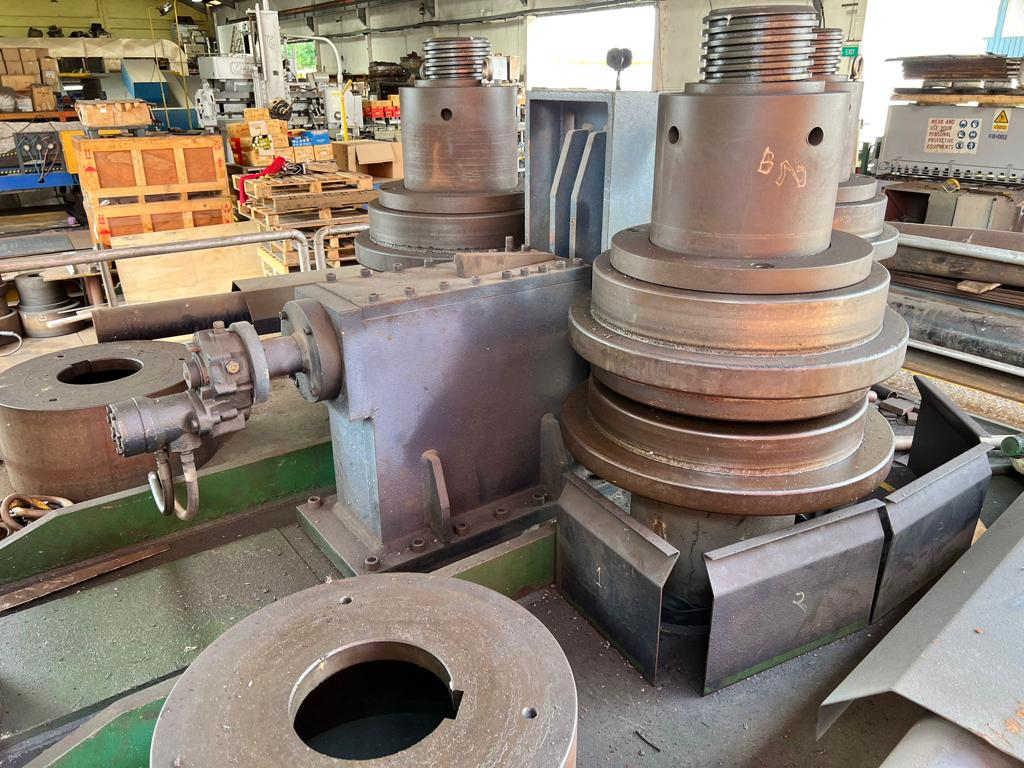

-Machine complete with rolls and tooling installed on-board:

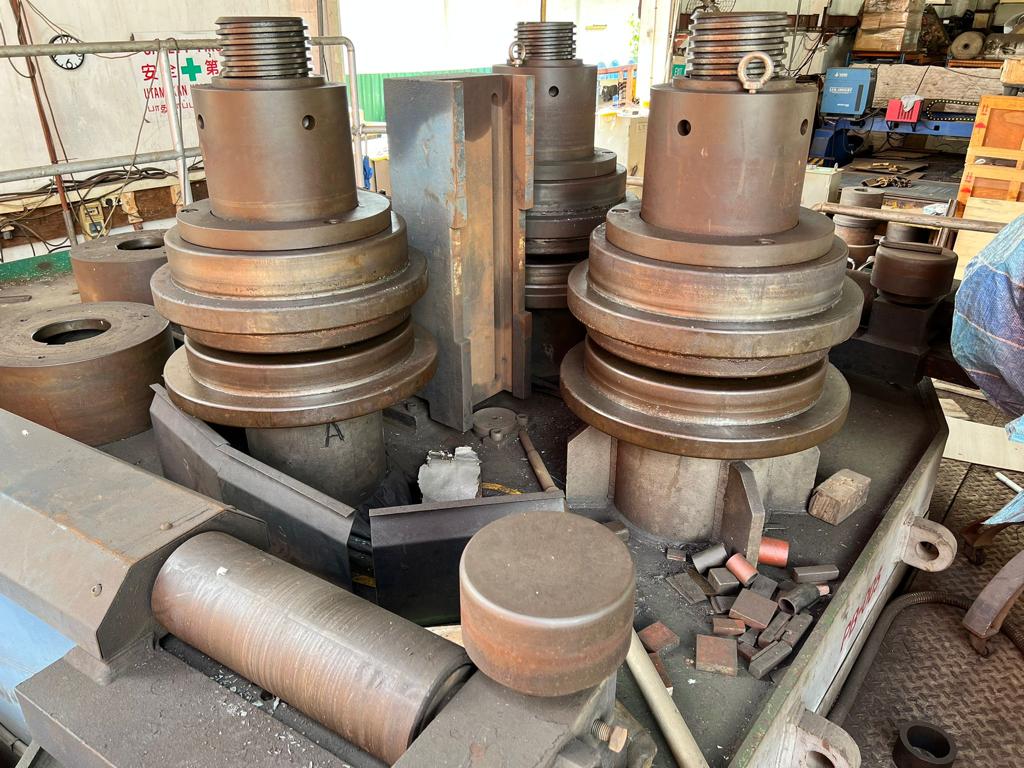

Nr.1 Complete universal set of rolls interchangeable
Nr.1 Traction tooling hydraulic operated to bend H beam on the hard-side
Nr.2 heads rollers for HEB160 HEB200 bending on the hard-side.
Nr. 1 set of rolls for pipe bending 6 "
Nr.2 dual side arms fully hydraulic operated in 3 directions,
Nr.2 heads rollers to guide the angle profile bending leg-in and leg-out.
Nr.2 digital position readout for repeatability of bending works.

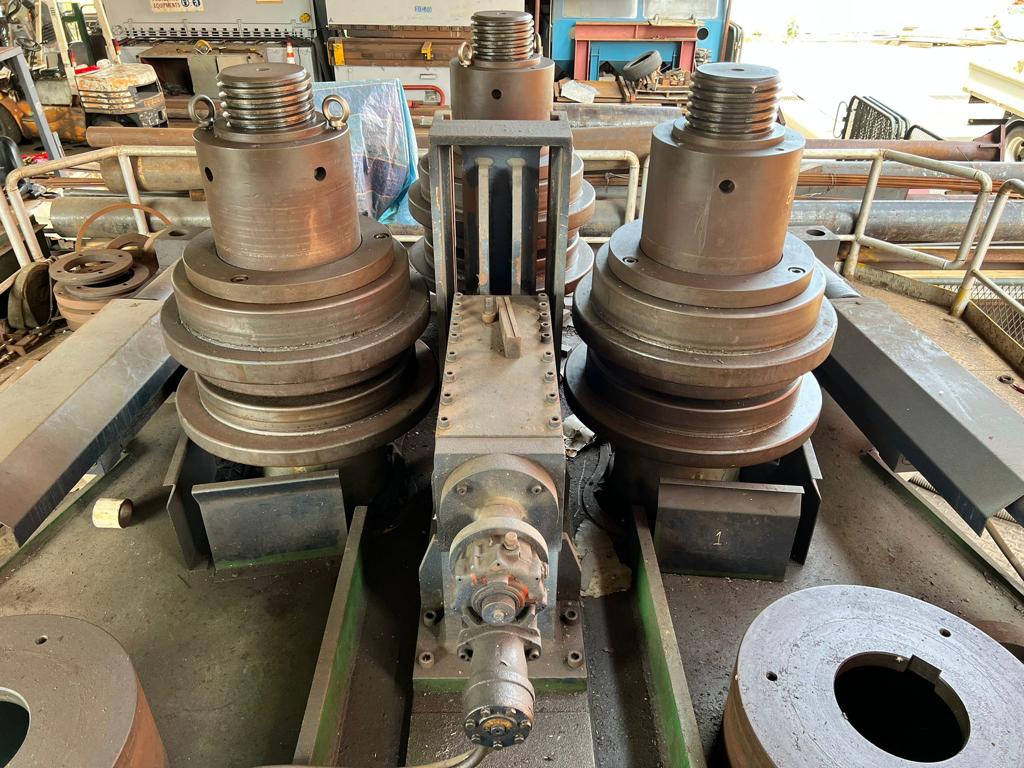

-3 rolls driven system with individual hydraulic motor & gear unit on each shaft.
-The 3 shafts are installed on bearings, heavy duty type with sealed lubrication.

-Centralized control panel on wheels with all electric commands
-Dual rolling speed up to 5 mtr / min with auto-synchronized traction between the 3 rolls.
-Safety devices and emergency shut-down in compliance with regulation.
-power 380 Vac 50 Hz -30 Kw
-operation / service manuals and schematics along with the machine -

Set of rolls for specific works.

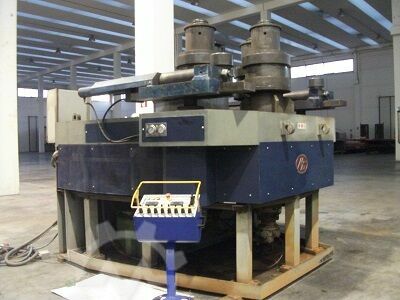

Model AR200 -hydraulic Section bending machine

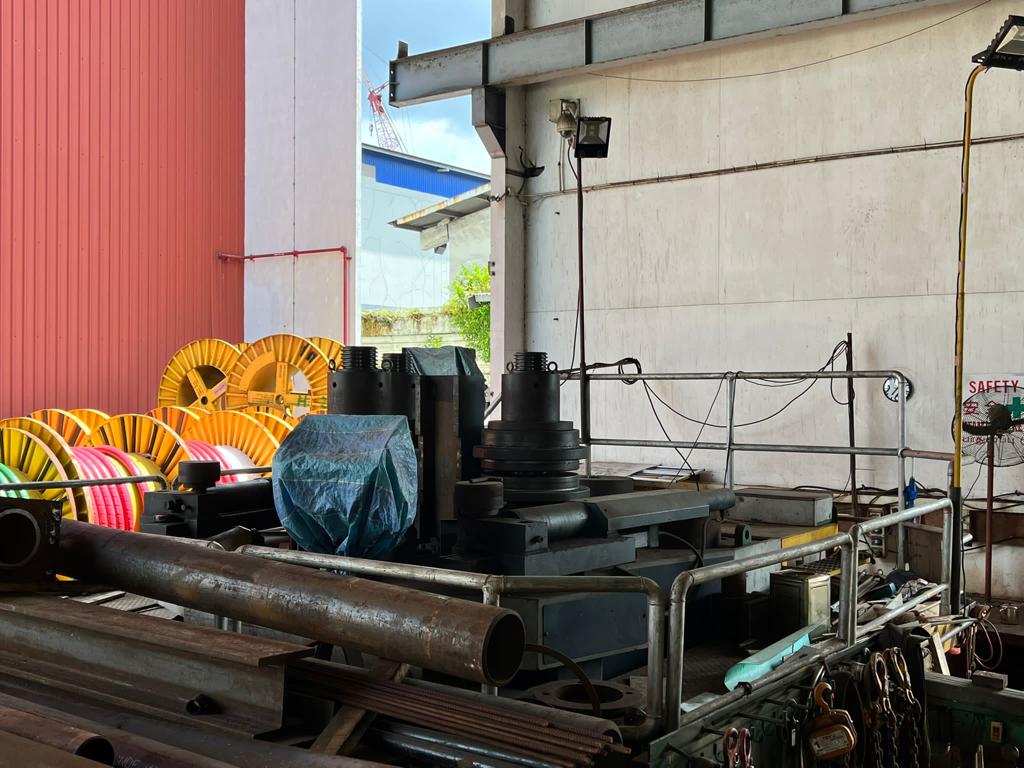

Good Condition, available in Singapore. Demo available
